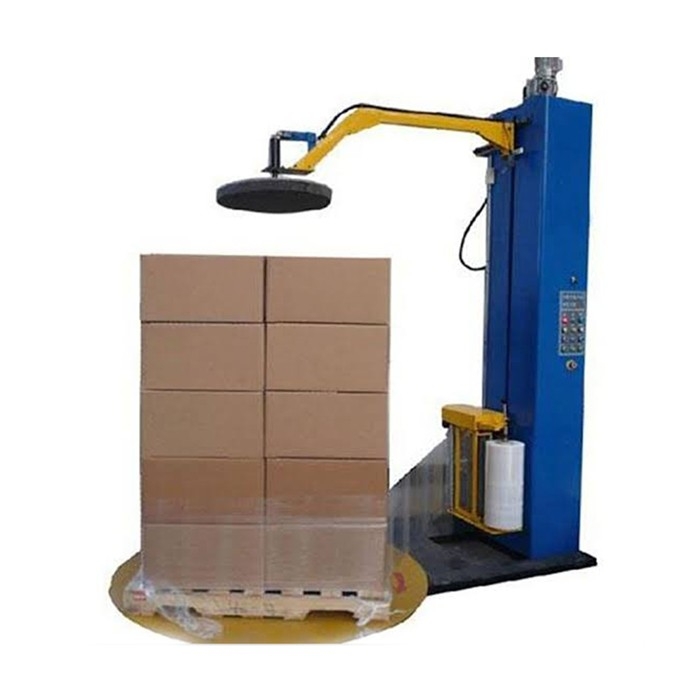

Top Pressure Pallet Stretch Wrapping Machine

Top Holding System Pallet Stretch Wrapping Machine

Model: NPTW-01-FA. TT 1650

Top Holding / Pressure System Pallet Stretch Wrapping Machine are used to wrap film around a loaded pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage. It's been widely used in industries such as glassware, tools, electric electronic, paper, pottery, food beverage, etc.

Features:

PLC Controlled, Auto and Semi-Auto easy operations

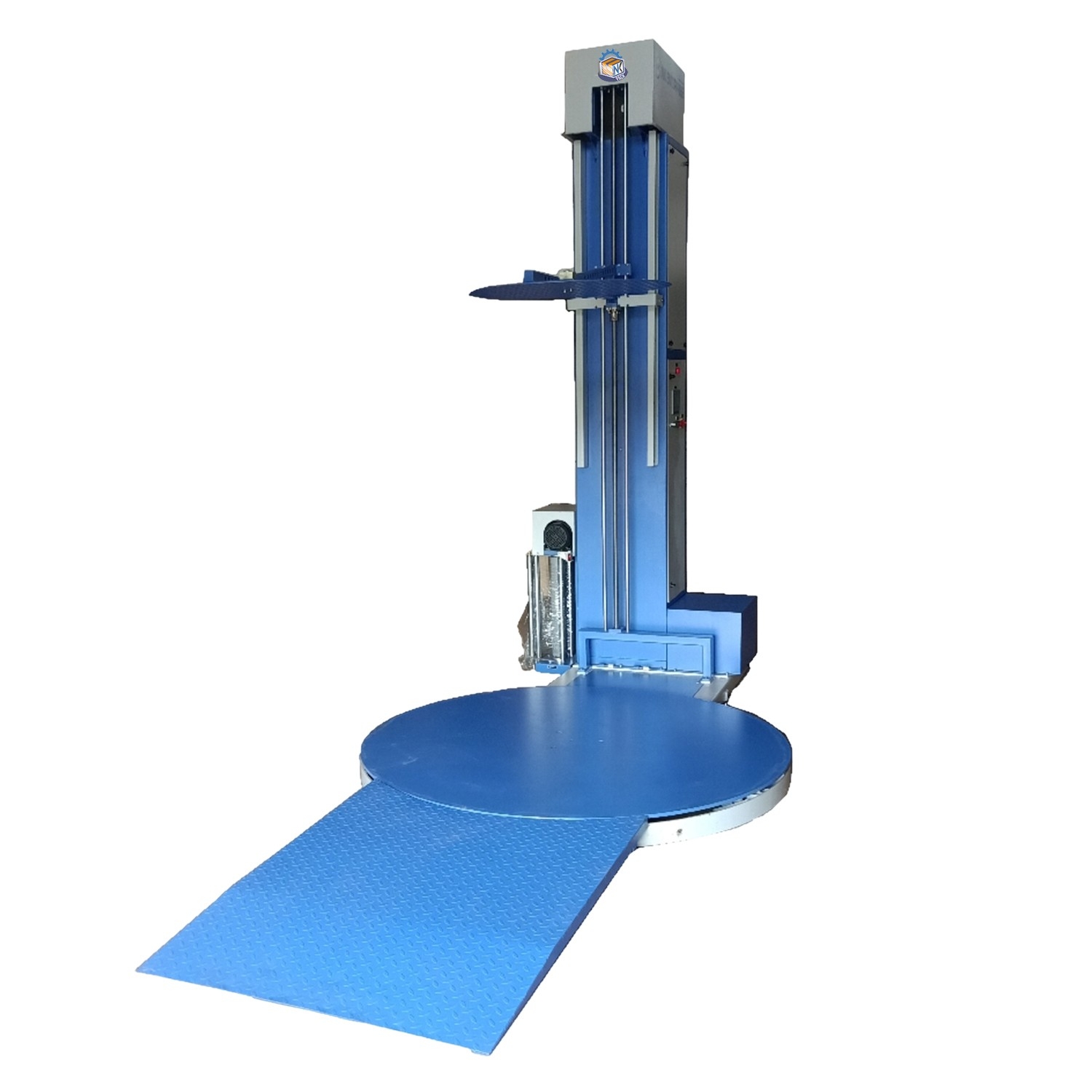

With Ramp for easy loading and unloading
The Converter is adopted to adjust the speed of TT and pre-stretch unit
Turn Table and Power Pre-Stretch Unit Adopt Chain Drive
Top Plate Pressure System for Lower Weight Pallet Holding
Film carriage adopt power pre stretch unit,Save stretch film up to 300%
Wrapping height adjust by photo sensor and timer mode
Packaging tension is adjustable by special breaker
Indicator alarm automatically when trouble occurs
Output: 18 To 20 pallet/hr
Excellent wrapping performances, Save wrapping cost and time.

Made in India

Technical Speciﬁcation

Model: NPTW-01-FA. TT 1650

Performance

Turntable speed: 0 to15rpm

Loads per hour: 18 To 20/hr depending upon the pick & place of pallet

Wrapping Height: 200 to 2500 mm

MAX. Loading weight: 2000 kg

Mechanical specification

Turntable Diameter: 1650mm

Turntable Height: 80mm

Machine Length (mm): 2600mm

Machine Width (mm): 1650mm

Machine Height (mm): 2800 mm

Top holding System: Motorize

Construction: M.S. Sheet , LASER cut machine, Al. Alloy & channel

Structure: MS powder coated

Shipping Weight: 850 Kg approx

Film Delivery System

Type: Power pre stretch

Film Stretch: 250 To300% (adjustable)

Film Specification

Film roll OD: 250 To 300 mm

Core size: 75 mm

Film roll height: 20 inch(standard size)

Film thickness (micron): 29 To 50 micron

Electrical Specification:

Power requirement: 380/440V , 50Hz , 3 phase + N

Power consumption: 1.5 kw

Controller type: Delta make, PLC/HMI having recipe function will Alloy saving different programmed.

Ac Drive make(VFD): Delta make

Motor: Crompton make

Gear box: Gear world make

Switchgear: Schneider make

Turntable Motor: 1HP,750W×1440rpm 3-phase, 230V/50Hz AC geared Motor 1:30

Film Elevator motor: 0.5HP, 370W×1440rpm 1-phase, 230V/50Hz AC geared Motor 1:80,0.5hp

Powered Pre stretch motor: 0.5HP,1440rpm1-phase, 230V/50Hz AC geared Motor, 1:10,0.5hp

Top Plate Press motor: 0.5Hp,1440 rpm,
