Vertical Coil Stretch Wrapping Machine - 6T Capacity

Model Number

NVW-01-FA

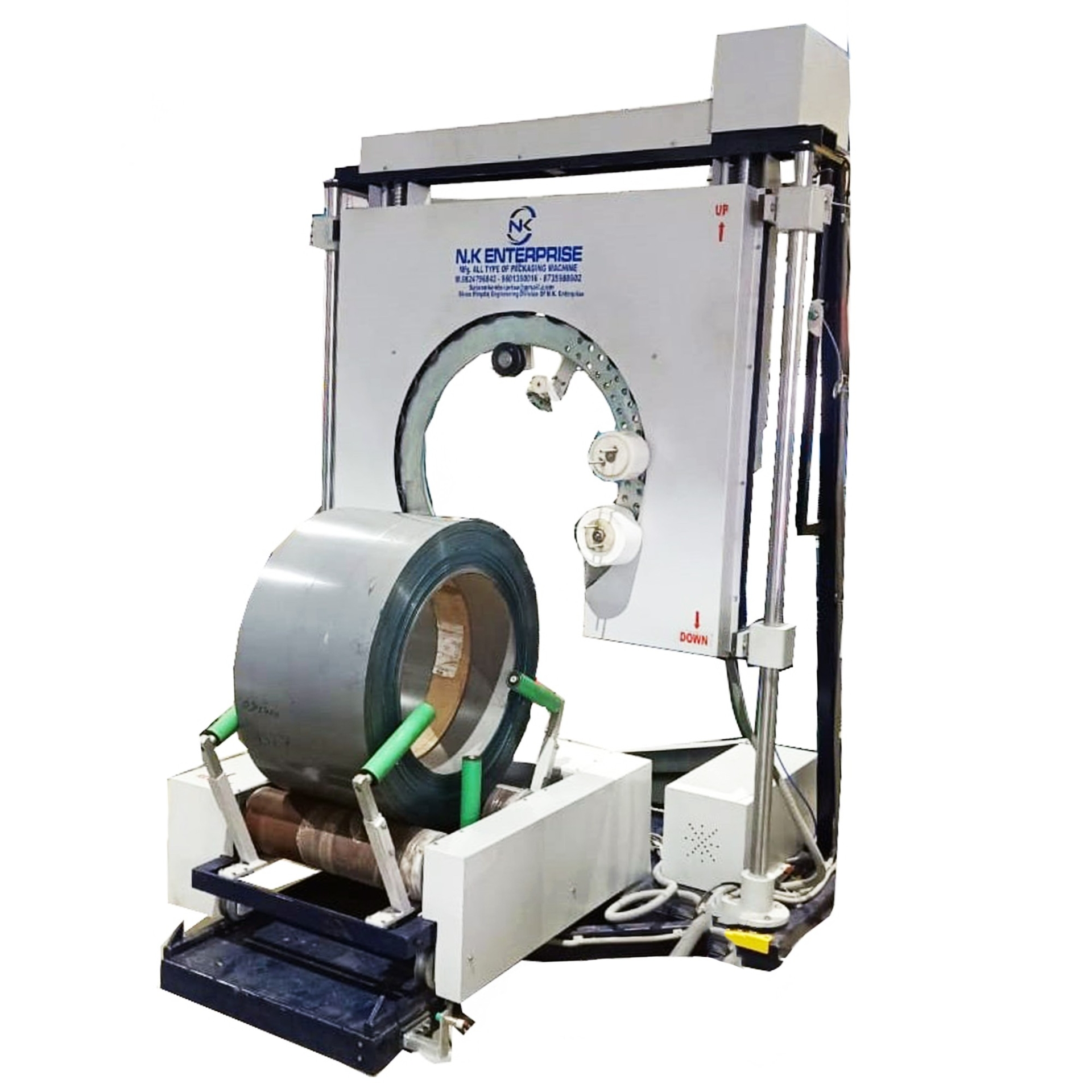

Vertical Coil Stretch Wrapping Machine

Heavy Duty (6000Kg / 6T - Capacity)

Model: NVW-01-FA

N.K Enterprise leads the way in Heavy Duty 6 T Capacity Vertical coil stretch wrapping machine to help improve your packaging process and save cost. This unique semi auto machinery, which packing coils through eye core, is flexible and can be tailored to meet the specification of each customer and packaging line configuration.

We make the machine according to the customer's application

Features

PLC base automatic and semi auto operation
Product trolley auto rev/forw for easy coil loading and unloading
Two nos wrapping roll used
The converter is adopted to adjust the speed of ring, trolley and rollers
Overlap of the packing tape according to requirement
Automatic Wrapping material holding and cutting
Guard roller, soft starts and stop for safety operation
Height of the ring could be adjusted for different OD of the coil
Packaging tension is adjustable by special breaker
The rollers are wrapped by polyurethane for protect the surface of the coil
Indicator alarm automatically when trouble occurs
Safety : mesh type fencing
Output : 30 To 60sec per coil

Made in India

Technical Speciﬁcation

Model: NVW-01-FA (Heavy Duty)

Product Specification

Product name: Slit Coil, Wire Coil, Pipe Coil, Heavy Weight Coil

Coil Outer Diameter: 800 To 2500 mm

Coil Inner diameter: 500 To 1200 mm

Coil Width: 50 To 600 mm

Coil weight: 6000 kgs

Mechanical Details

Machine Body Structure: M.S Material With powder coating

Wrapping Ring size: 16mm Thickness, M.S Material

Wrapping Ring Up/Down: (up-Down auto sytem)

Products Guide Roller: 6 Nos, (Open/Close)PU Coated (auto)

Product Trolley: 1 Nos, Auto Rev/Forw

Products Roller: 2 Nos, Metal + PU coated

Pneumatic cylinder Air: 6kg/2cm Require

Machine Dimension: Depend on coil size

Film Delivery System

Type: Pre-Stretch

Film Roll Dispatcher: 2 Nos

Film Roll Dimension: OD – 250, Width – 200 , ID – 75 mm

Material: LLDPE Stretch film, HD,VCI, Anti-rust film, plastic film

Film holding and cutting: Auto (by Pneumatic Cylinder)

Electrical Specification:

Power requirement: 380 To 440V, 50/60 Hz, 3 phase + N

Power consumption: 3 To 7 KW

Wrapping Ring: Motor+ Gear box + VFD

Wrap Ring Up/Down: Motor+ Gear box + VFD

Product Roller: Motor+ Gear box + VFD

Product Trolley Rev/Forw: Motor+ Gear box + VFD

Product Guide roller: Motor+ Gear box + VFD

Autimation:

Controller Type: Delta make, PLC having recipient function will allow saving different programmed.

Main Drive: Delta make AC Drive (VFD)

PLC & HMI: Delta make

Motor: Crompton/Hindustan make

Gear Box: Worm + Helical Gear House make

Sensor & Limit switch: Jigo+ Schneider make

Switchgear: Schneider make

Pneumatic Cylinder: Janastic make
