Technical Speciļ¬cation

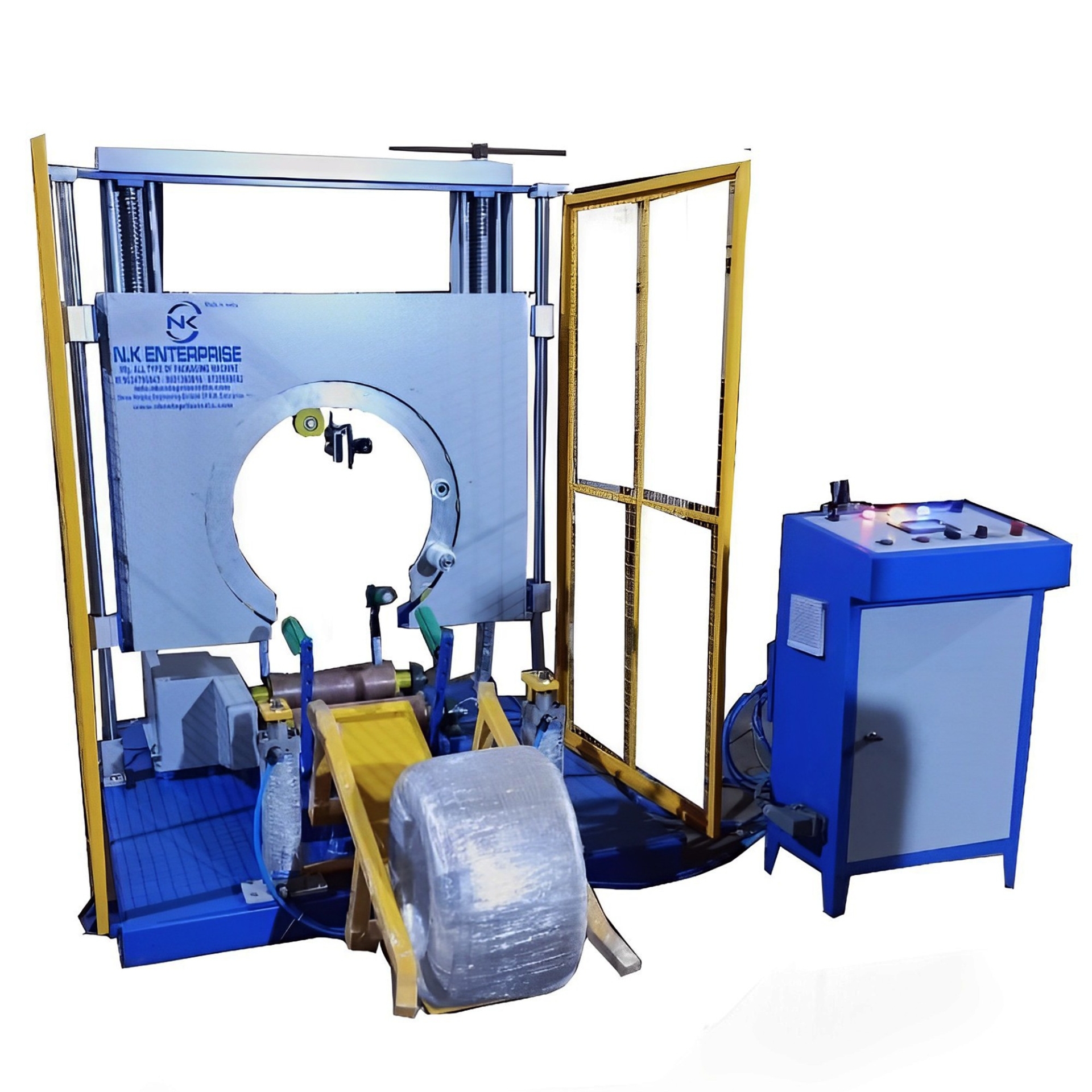

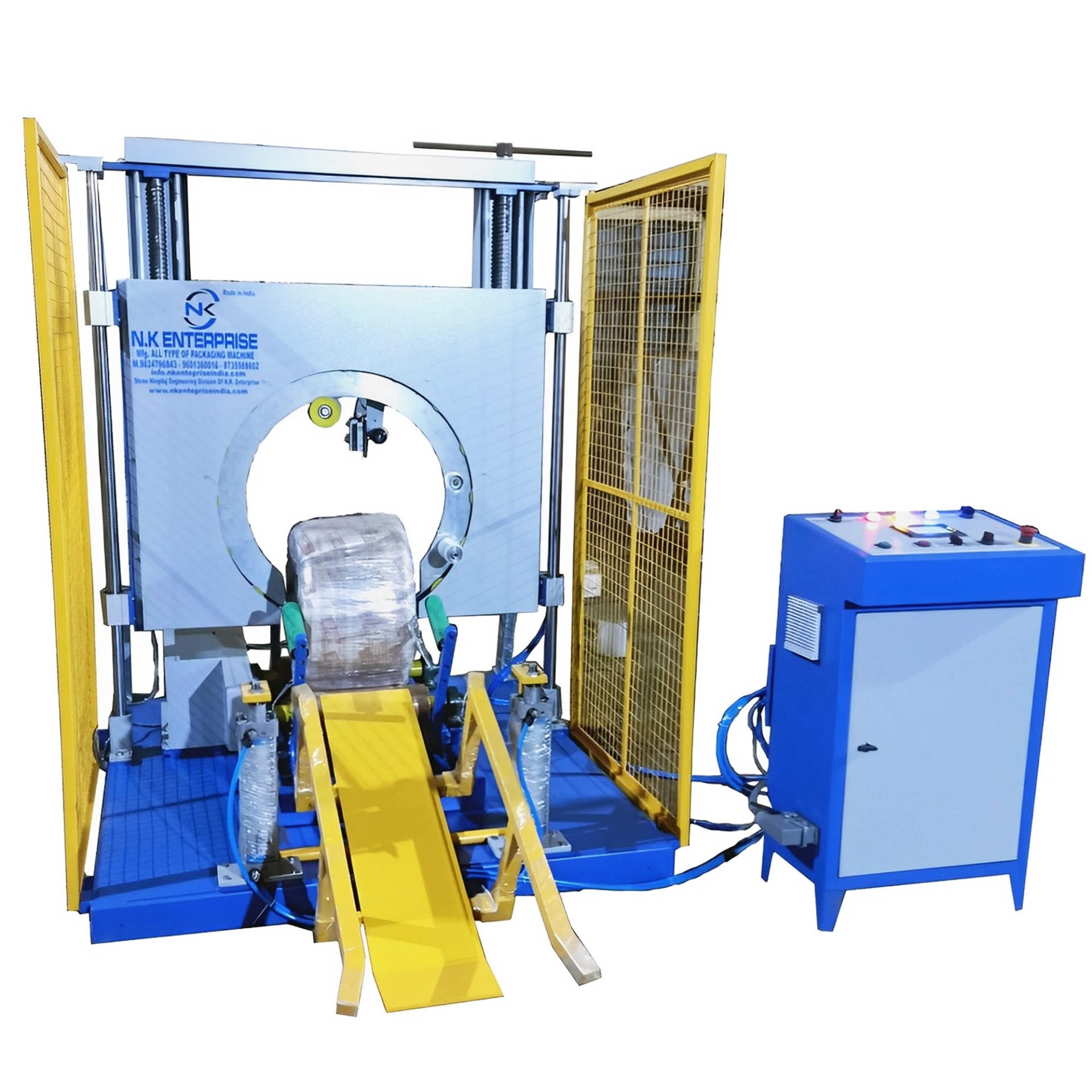

Model: NVW-02-SA (Heavy Duty)
Product Specification
Product name: Tyre, Wire coil, steel wire coil irrigation pipe coil, steel coil
Coil Outer Diameter: 550 To 1200 mm
Coil Inner diameter: 325 To 700 mm
Coil Width: 150 To 400 mm
Coil weight: 150 kg
Mechanical Details
Machine Body Structure: M.S Material With powder coating
Wrapping Ring size: 16mm Thickness
Wrapping Ring Up/Down: Available ( up-Down) with manual System
Coil Loading & Unloading: Auto ( By pneumatic cylinder) with liner screw support
Products Guide Roller: 6 Nos, available , Rubber P.U Coated/PVC
Products Roller: 2Nos, Rubber PU coated
Pneumatic cylinder Air: 6kg/2cm
Machine Dimension: W-1400mm,H-2000,L-2500.aprrox
Film Delivery System
Type: pre stretch
Film Roll Dispatcher: 2 Nos
Film Roll Dimension: 1(OD-200,ID-25,Width-120). 2(OD-200,ID-25,WD-120)
Material: LLDPE Stretch film,HD,VCI, Anti-rust film, plastic film, woven Tape
Film holding and cutting: Auto (by Pneumatic Cylinder)
Coil unloading after wrap: Push by (by Pneumatic Cylinder)
BOPP Tapping System- (As per requirement )
BOPP Brand Tape Size: W1.5 to 2 Inch, OD100
Auto system by pneumatic cylinder
Electrical Specification:
Power requirement: 3 phase, AC 380 To 440V, 50/60 Hz+ N
Power consumption: 2.6 KW
Wrapping Ring Motor: 1HP + 1HP Brake Motor
Product Roller Motor: 1HP, Ac 1440 RPM+ Gear box
Product Loading / Unloading System: Pneumatic Cylinder
Film Holding & Cutting: Pneumatic Cylinder
Air Requirement: 6kg/2cm
Automation:
Controller Type: Delta/Siemens make, PLC having recipient function will allow saving different programmed.
Main Drive: Delta/Siemens make AC Drive
PLC & HMI: Delta/Siemens make
Panel box: Separate Box
Motor: Crompton make
Gear Box: Bonfigolioli make
Sensor: P&F make
Switchgear: Schneider make
Bearing: SKF/NTN Bearing
Machine Font two side Mesh type fencing
Front Side: Light curtain Transmitters (safety for machine run condition)
