Technical Speciļ¬cation

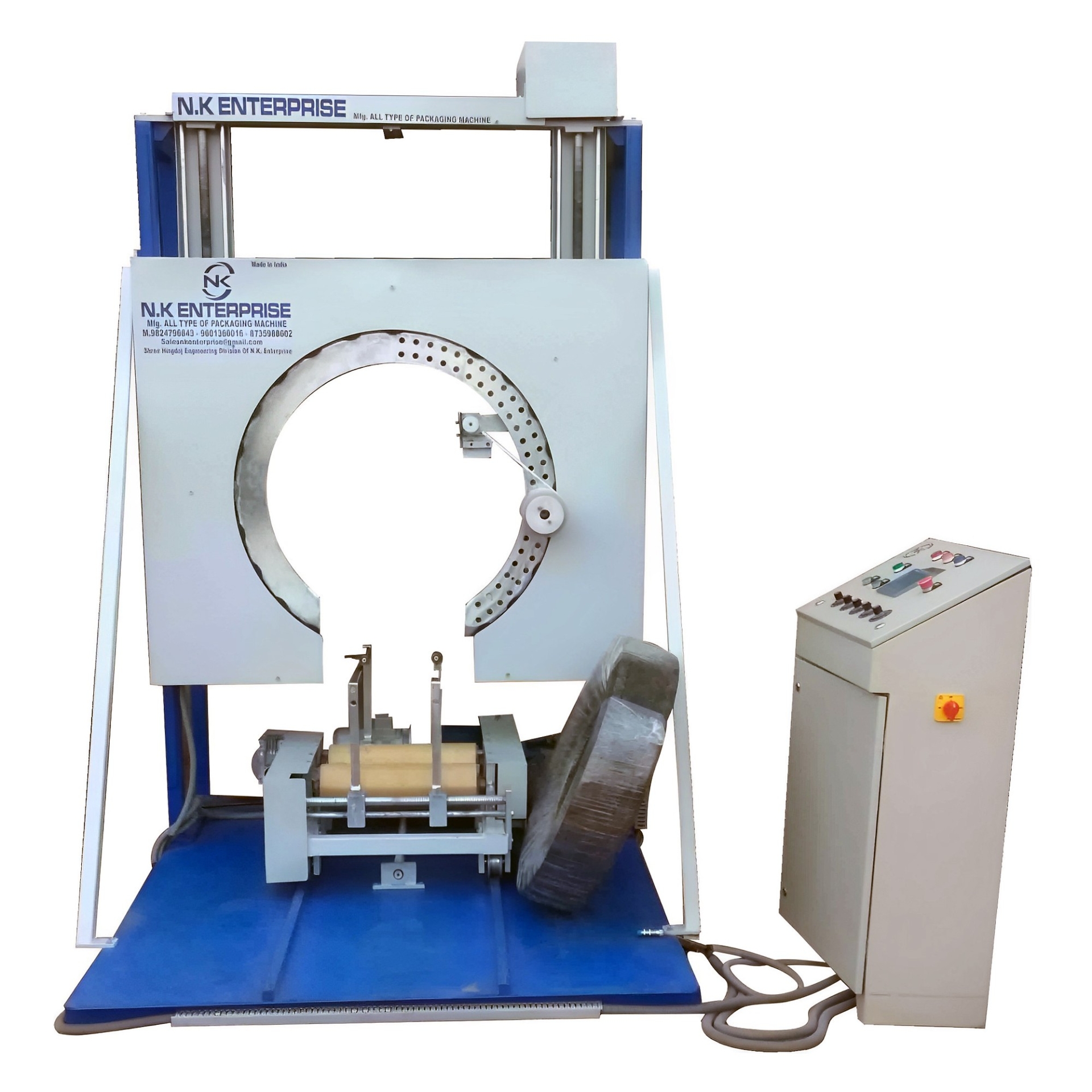

Model: NVW-02-SA
Product Specification
Product name: Wire coil, Steel coil, Pipe coil, any other coil
Coil Outer Diameter capacity: 550 T0 1200 mm
Coil Inner diameter capacity: 300 To 1000 mm
Coil Width capacity: 30 To 500 mm
Coil load weight: 25 To 5000 kg
Mechanical Details
Machine Body Structure: M.S Material With powder coating
Wrapping Ring size: 16mm Thickness (M.S Material)
Wrapping Ring Up/Down: Manual ( Up-Down)
Products Guide Roller: 6Nos, Manual (open & Close)
Products Roller: 2Nos, Rubber PU coated
Product Trolley Fix/Adjustable: Available
Pneumatic cylinder Air: Require
Machine Dimension: As per Product dimension
Film Delivery System
Type: Pre-Stretch
Film Stretch: Adjustable
Film Specification
Film Roll Dispatcher: 2Nos (HDPE and Stretch Roll)
Film Roll Dimension: (OD-200,ID-75,Width-100)
Material: LLDPE Stretch film,HD,VCI, Anti-rust film, plastic film, woven Tape
Film holding and cutting: Auto (by Pneumatic Cylinder)
Electrical Specification:
Power requirement: 3 phase, AC 380 To 440V, 50/60 Hz+ N
Power consumption: 2.5 KW
Wrapping Ring: Motor + Gear box + VFD
Product Roller: Motor + Gear box VFD
Film cutting and Holding: Pneumatic cylinder
Autimation:
Controller Type: Delta/Siemens make, PLC having recipient function will allow saving different programmed.
Main Drive: Delta/ Siemens make AC Drive (VFD)
PLC: Delta/ Siemens make
Motor: Hindustan/Crompton make
Gear Box: Robox make
Sensor: P&F make
Switchgear: Schneider make
Pneumatic Cylinder: Janastic make
