Technical Specification

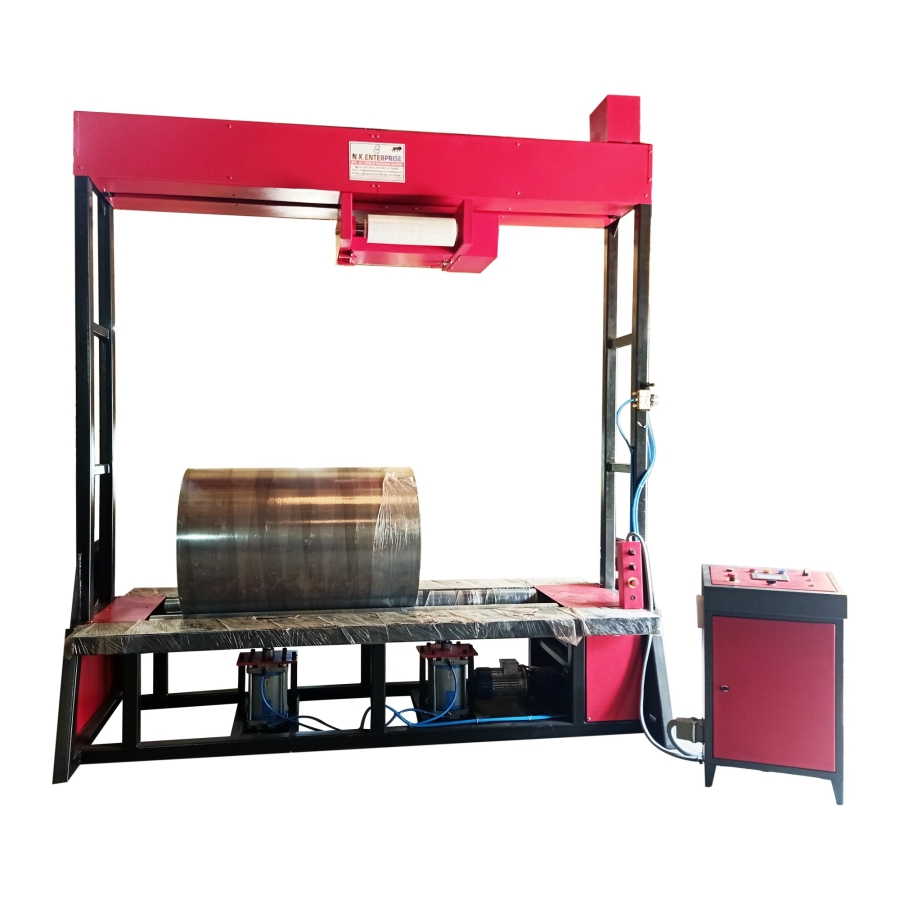

Model: NRPW-02-FA

Mechanical specification

Roll Outer Diameter: Min 300 mm X Max – 2500 mm

Roll Length: Min 250 mm X Max – 4000 mm

Coil weight: 100 to 2500 kgs

Machine Body Structure: M.S Material With powder coating

Machine size: (W*H*L) Depend Roll size

Machine Weight: ( kg) Depend Roll weight

Roler System

Products Roller: 2 Nos, (Mild Steel + Rubber Coated)

Product Roller Size: OD-200 mm,

Product Roller Height: 600 mm (will be done underground)

Film Specification

Film roll OD: 250 To 300 mm

Core size: 75 mm

Film roll height: 20 inch (standard size)

Film thickness (micron): 23 To 50 micron

Film Stretching: 250% To 300%

Electrical Specification:

Power requirement: 380/420V , 50Hz , 3 phase + N

Power consumption: 1.5 kw

Product Roller Motor: 2HP,750W×1440rpm 3-phase, 230V/50Hz AC geared Motor 1:30

Film Elevator motor: 0.5HP, 370W×1440rpm 1-phase, 230V/50Hz AC geared Motor 1:80,0.5hp

Powered Pre stretch motor: 0.5HP,1440rpm1-phase, 230V/50Hz AC geared Motor, 1:10,0.5hp

Autimation:

Controller Type: Delta make, PLC having recipient function will allow saving different programmed.

Main Drive: Delta make AC Drive

PLC: Delta make

Motor: Delta make

Gear Box: Gear House make

Proximity switches: DA

Switchgear: Schneider make
